Well Water Systems

Well Water Dual Tank

Purpose-built for private well water. Addresses iron, manganese, sulfur odors, sediment, and hardness in a staged dual-tank system engineered specifically for the challenges of well water.

Katalox Light MediaLifetime Warranty on Dry PartsFree Installation

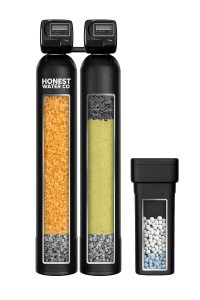

Well Water Dual Tank System
How It Works

Staged Treatment Built for Well Water Challenges

Well water presents a different set of challenges than city water. Iron causes orange rust staining. Manganese causes black staining. Hydrogen sulfide creates a rotten egg odor. Sediment is heavier and more variable. A standard city water softener is not designed for these conditions.

The Well Water Dual Tank uses Katalox Light, a premium German-engineered filtration media, in the first tank to oxidize and filter iron, manganese, hydrogen sulfide, and sediment. The second tank handles softening through ion exchange. Both tanks backflush automatically.

Katalox Light iron, manganese, and sulfur removal media
WQA Gold Seal CG10 softening resin
Both tanks equipped with high-efficiency smart valves
Both tanks self-backflush automatically
100% Soft Water Guarantee
Self-cleaning system
Benefits

What Changes After Installation

Comprehensive protection against the full range of well water contaminants.

Eliminates Iron Staining

Katalox Light oxidizes dissolved iron and filters it out before it reaches your fixtures, eliminating the orange rust stains on tubs, sinks, and laundry.

Removes Rotten Egg Odor

Hydrogen sulfide, the gas responsible for rotten egg odor in well water, is neutralized by the Katalox Light media in the first tank.

Removes Black Staining

Manganese causes dark black or brown staining on fixtures and laundry. Katalox Light captures it at the filtration stage.

Softens the Water

The second tank handles ion exchange softening, removing calcium and magnesium so appliances, plumbing, and fixtures are protected from hardness.

Both Tanks Self-Backflush

Automatic backwashing cleans and regenerates both tanks on a regular cycle, maintaining peak filtration performance without any manual intervention.

Designed for Well Water Variability

Well water composition changes seasonally. This system is engineered to handle variability in iron, sediment, and pH that city water systems are not designed for.

What's Included

In the Package

Well Water Dual Tank System

Two-tank staged treatment engineered for private well water. Katalox Light filtration followed by ion exchange softening.

  • Tank 1: Katalox Light filtration media
  • Tank 2: WQA Gold Seal CG10 softening resin
  • Both tanks self-backflush automatically
  • High-efficiency smart control valves
  • 100% Soft Water Guarantee
  • Free professional installation
Specifications

Technical Specs

System TypeWell Water Dual Tank
Tank 1 MediaKatalox Light (iron, manganese, H2S removal)
Tank 2 MediaWQA Gold Seal CG10 Softening Resin
TargetsIron, manganese, hydrogen sulfide, sediment, hardness
BackflushBoth tanks (automatic)
Control ValveHigh-efficiency smart valves
Warranty (Dry Parts)Lifetime
FAQ

Common Questions
